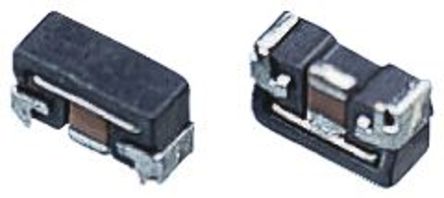

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Chip EMI Filters
Type: EXCCET
■Features
● Rated current (2 A max.)
●Eight capacitance values in a wide range, related to the noise frequency
● Suitable for narrow pitch insertion
● Suitable for applications requiring thin design
●RoHS compliant
■Recommended Applications
●Digital equipment such as PCs, word processors, printers, HDD, PPC and communication equipment.
● Digital audio and video equipment.
● AC adapters and switching power supplies.
●Electronic musical instruments and other digital equipment.

Show

EXCCET101U Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	1806
Voltage Rating (DC)	50 V
Current Rating	2 A
Capacitance	100 pF
Resistance	50 Ω
Current Rating (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating (Max)	50 VDC
Voltage Rating	50 V
	Show
Size-Length	4.5 mm
Size-Width	1.8 mm
Size-Height	2.7 mm
Product Lifecycle Status	Unknown
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
