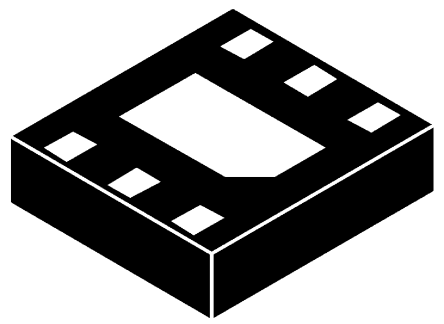

Image is for your reference only,please check specifications for details

FAN2001MPX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC64452333
Category:
DC to DC Converter
Package:
MLP-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 5.5V Step Down Single-Out 0.8V to 5.5V 1A 6Pin MLP EP T/R
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 247.5

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FAN2001MPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	MLP-6
Frequency	1.30 MHz
Supply Voltage (DC)	2.50V (min)
Number of Outputs	1 Output
Output Voltage	0.8V ~ 5.5V
Output Current	1 A
Number of Positions	6 Position
Switching Frequency	1.3 MHz
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	0.8 V
Output Current (Max)	1 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.5 V
Input Voltage	2.5V ~ 5.5V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
