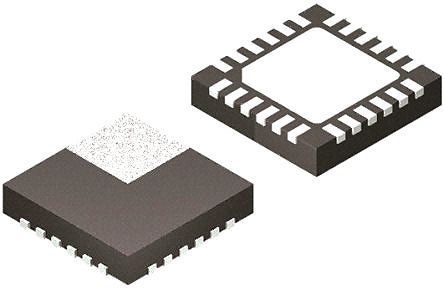

Image is for your reference only,please check specifications for details

FAN23SV06PMPX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC92823533
Category:
DC to DC Converter
Package:
QFN-34
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 7V to 15V Step Down Single-Out 0.6V to 5.5V 9A 34Pin PQFN EP T/R
Stock Locations:
Availability:
3,750 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.98

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN23SV06PMPX is a highly efficient integrated synchronous Buck Regulator capable of operating with an input range from 7 to 15V and supporting 6A continuous load current. The device can operate from a 5V rail (±10%) if VIN, PVIN and PVCC are connected together to bypass the internal linear regulator. This device utilizes Fairchild"s constant on-time control architecture to provide excellent transient response and to maintain a relatively constant switching frequency. The FAN23SV06 utilizes pulse frequency modulation (PFM) mode to maximize light-load efficiency by reducing switching frequency when the inductor is operating in discontinuous conduction mode at light loads. The FAN23SV06P with forced pulse width modulation (PWM) mode is available for applications that require a relatively constant switching frequency across the full load range. Switching frequency and overcurrent protection can be programmed to provide a flexible solution for various applications.
Accurate enable facilitates VIN UVLO functionality
PFM mode for light-load efficiency
Excellent line and load transient response
Precision reference of ±1% over temperature
Programmable soft-start
Low shutdown current
Adjustable sourcing current limit
Internal boot diode
Overvoltage, undervoltage, overcurrent and thermal shutdown protection
Over to 96% peak high efficiency

Show

FAN23SV06PMPX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	34 Pin
Case/Package	QFN-34
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	6 A
Number of Positions	34 Position
Switching Frequency	1.5 MHz
Input Voltage (Max)	15 V
Input Voltage (Min)	7 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	15 V
	Show
Size-Length	5.5 mm
Size-Width	5 mm
Size-Height	1.025 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
