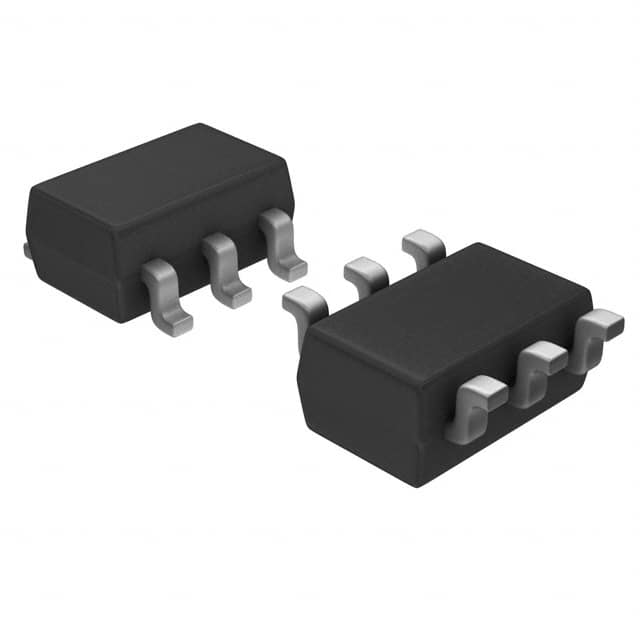

Image is for your reference only,please check specifications for details

FAN4146ESX - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC48656703
Category:
Power Management IC
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
Controller -1.5V to 16V 6Pin SuperSOT T/R
Stock Locations:
Availability:
470 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.86

Updated at 17/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FAN4146 is a low-power controller for AC outlet appliance leakage circuit interrupters (ALCI) and two-wire residual current devices (RCD). The FAN4146 detects hazardous grounding conditions and open circuits the line before a harmful shock occurs. Internally, the FAN4146 contains a diode rectifier, precision bandgap 12V shunt regulator, precision low VOS offset-sense amplifier, time delay noise filter, window-detection comparators, and an SCR driver. With the addition of a minimum number of external components, the FAN4146 detects and protects against a hot-wire-to-ground fault. The minimum number of components and the small SuperSOT™ package allow for a small-form-factor, low-cost application solution. The FAN4146 circuitry has a built-in rectifier and shunt regulator that operates with a low quiescent current. This allows for a high-value, low-wattage-series supply resistor. The internal temperature compensated shunt regulator, sense amplifier, and bias circuitry provide for precision ground-fault detection. The low V offset-sense amplifier allows direct coupling of the sense coil to the amplifier’s feedback signal. This eliminates the large 50/60Hz AC-coupling capacitor. The internal delay filter rejects high-frequency noise spikes common with inductive loads. This decreases false nuisance tripping. The internal SCR driver is temperature compensated and designed to satisfy the current requirements for a wide selection of external SCRs. The minimum number of external components and the 6-pin SuperSOT™ package enable for a low-cost, compact design and layout. The FAN4146ESX is an enhanced temperature range device.
Features
---
|
For two wire ALCI and RCD applications
Precision sense amplifier and bandgap reference
Built-in AC rectifier
Direct DC coupled to sense coil
Built-in noise filter
Low-voltage SCR disable
SCR gate driver
Adjustable sensitivity
Minimum external components
Meets UL943B requirements
Ideal for 120V or 220V systems

Show

FAN4146ESX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Number of Outputs	1 Output
Supply Current	400 µA
Number of Positions	6 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-35 ℃
Supply Voltage (Max)	12.7 V
	Show
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-25℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
