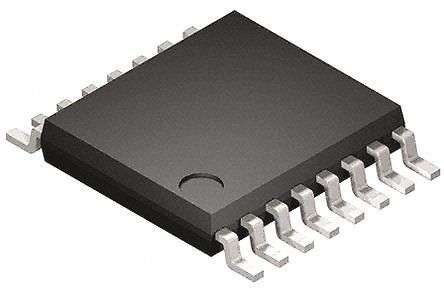

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Fairchild Semiconductor"s FAN5069EMTCX power supply controller will regulate and display power consumption levels to help you create a better system. This part has an input voltage of 3 to 24 V. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C.
FAN5069EMTCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TSSOP-16 |
| Number of Outputs | 2 Output |
| Output Voltage | 15 V |
| Power Dissipation | 15 mW |
| Switching Frequency | 200 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 4.5 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 15 mW |
| Supply Voltage | 4.5V ~ 5.5V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
