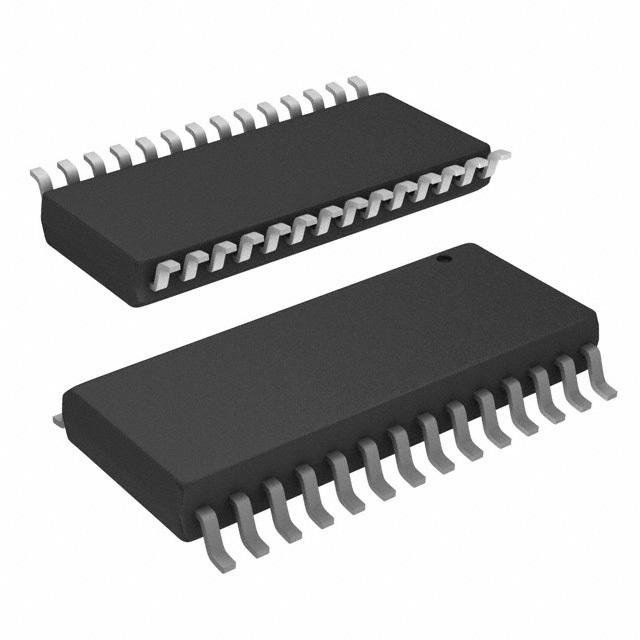

Image is for your reference only,please check specifications for details

FAN7389MX1 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC143618075
Category:
FET Driver
Package:
SOIC-28
Datasheet:
Datasheet 3D Model
Description:
Driver 600V 0.65A 6Out Hi/Lo Side Half Brdg Non-Inv 28Pin SOIC W T/R
Stock Locations:
Availability:
550 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Description**
The FAN7389 is a monolithic three-phase half-bridge gate-drive IC designed for high-voltage, high-speed
driving MOSFETs and IGBTs operating up to +600 V.
Fairchild’s high-voltage process and common-mode noise canceling technique provide stable operation of
high-side drivers under high-dv/dt noise circumstances.
An advanced level-shift circuit allows high-side gate driver operation up to VS = -9.8 V (typical) for VBS =15 V.
The protection functions include under-voltage lockout and inverter over-current trip with an automatic fault
clear function.
**Features**
 Floating Channel for Bootstrap Operation to +600 V
 Typically 350 mA/650 mA Sourcing/Sinking Current Driving Capability for All Channels
 Extended Allowable Negative VS Swing to -9.8 V for Signal Propagation at VDD=VBS=15 V
 Output In-Phase with Input Signal
 Over-Current Shutdown Turns off All Six Drivers
 Matched Propagation Delay for All Channels
 3.3 V and 5.0 V Input Logic Compatible
 Adjustable Fault-Clear Timing
 Built-in Advanced Input Filter
 Built-in Shoot-Through Prevention Logic
 Built-in Soft Turn-Off Function
 Common-Mode dv/dt Noise Canceling Circuit
 Built-in UVLO Functions for All Channels
**Applications**
 3-Phase Motor Inverter Driver
 Air Conditioners
 Washing Machines
 General-Purpose Three-Phase Inverters

Show

FAN7389MX1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	SOIC-28
Rise/Fall Time	50ns, 30ns
Number of Outputs	6 Output
Output Current	650 mA
Number of Positions	28 Position
Power Dissipation	1.4 W
Rise Time	50 ns
Fall Time	30 ns
Fall Time (Max)	80 ns
Fall Time (Max)	100 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1400 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
HK STC License	NLR
