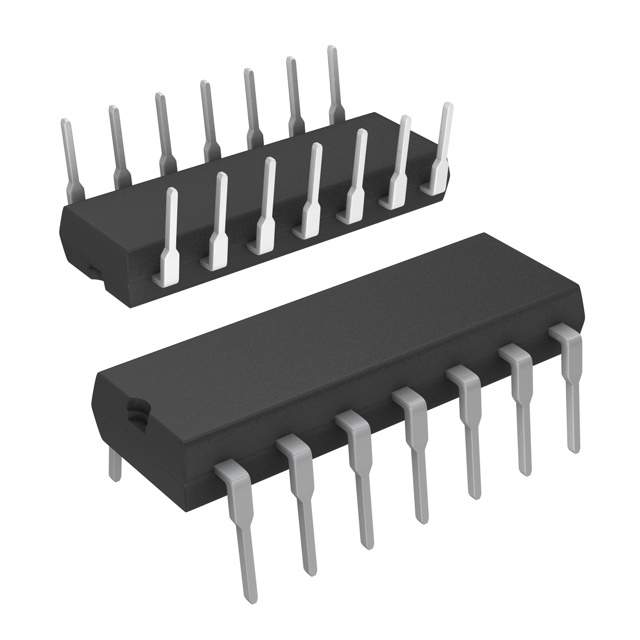

Image is for your reference only,please check specifications for details

FAN7392N - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC115004800
Category:
FET Driver
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
MOSFET DRVR 600V 3A 2Out Hi/Lo Side Full Brdg/Half Brdg Non-Inv 14Pin PDIP W Tube
Stock Locations:
Availability:
9,957 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FAN7392 is a monolithic high- and low-side gate drive IC, that can drive high-speed MOSFETs and IGBTs that operate up to +600V. It has a buffered output stage with all NMOS transistors designed for high pulse current driving capability and minimum cross-conduction.
Features
Floating Channel for Bootstrap Operation to +600V
3A/3A Sourcing/Sinking Current Driving Capability
Common-Mode dv/dt Noise Canceling Circuit
3.3V Logic Compatible
Separate Logic Supply (VDD) Range from 3.3V to 20V
Under-Voltage Lockout for VCC and VBS
Cycle-by-Cycle Edge-Triggered Shutdown Logic
Matched Propagation Delay for Both Channels
Outputs In-phase with Input Signals
Available in 14-DIP and 16-SOP (Wide) Packages

Show

FAN7392N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	DIP-14
Supply Voltage (DC)	10.0V (min)
Rise/Fall Time	25ns, 20ns
Number of Outputs	2 Output
Output Current	3 A
Number of Positions	14 Position
Power Dissipation	1.6 W
Rise Time	25 ns
Fall Time	20 ns
Fall Time (Max)	45 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1600 mW
Supply Voltage	10V ~ 20V
Supply Voltage (Max)	20 V
Supply Voltage (Min)	10 V
	Show
Size-Height	3.56 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
