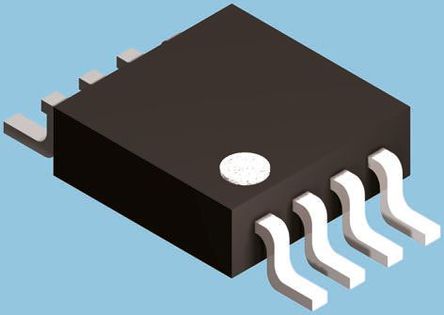

Image is for your reference only,please check specifications for details

FAN7602CMX - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC58390272
Category:
AC to DC Converter, AC/DC Power Module
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
FAN7602 Series 25V 450mA 65kHz Green Current Mode PWM Controller - SOIC-8
Stock Locations:
Availability:
9,478 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.75

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FAN7602C is a green current-mode PWM controller. It is specially designed for off-line adapter applications; DVDP, VCR, LCD monitor applications; and auxiliary power supplies.
The internal high-voltage startup switch and the burst mode operation reduce the power loss in standby mode. As a result, the input power is lower than 1W when the input line voltage is 265VACand the load is 0.5W. At no load condition, input power is under 0.15W. The maximum power can be limited constantly, regardless of the line voltage change, using the power limit function. The switching frequency is not fixed and it has random frequency fluctuation.
The FAN7602C includes various protections for the system reliability and the internal soft-start prevents the output voltage over-shoot at startup.
Features
Green Current Mode PWM Controller
Random Frequency Fluctuation for Low EMI
Internal High-Voltage Startup Switch
Burst Mode Operation
Line Voltage Feedforward to Limit Maximum Power
Line Under-Voltage Protection
Latch Protection & Internal Soft-Start (10ms) Function
Overload Protection
Over-Voltage Protection
Over-Temperature Protection
Low Operation Current: 1mA Typical
8-Pin DIP/SOP
