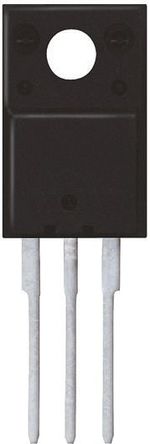

Image is for your reference only,please check specifications for details

FCPF7N60NT - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC109996800
Category:
MOSFET, MOSFET Transistor
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FCPF7N60NT Power MOSFET, N Channel, 6.8A, 600V, 0.46Ω, 10V, 2V
Stock Locations:
Availability:
957 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.53

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FCPF7N60NT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Drain to Source Resistance (on) (Rds)	0.46 Ω
Polarity	N-Channel
Power Dissipation	30.5 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	600 V
Continuous Drain Current (Ids)	6.8A
Input Capacitance (Ciss)	960pF @100V(Vds)
Input Power (Max)	30.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	30.5W (Tc)
	Show
Size-Length	10.36 mm
Size-Width	4.9 mm
Size-Height	16.07 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
