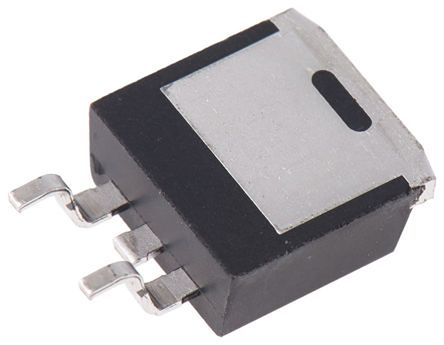

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDB047N10 is a N-channel MOSFET produced using Fairchild Semiconductor"s advanced PowerTrench® process. It has been tailored to minimize the ON-state resistance while maintaining superior switching performance. It is suitable for use in synchronous rectification for ATX/server/telecom PSU, battery protection circuit and micro solar inverter.
Fast switching speed
Low gate charge
High performance Trench technology for extremely low RDS (ON)
High power and current handling capability

Show

FDB047N10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0039 Ω
Power Dissipation	375 W
Threshold Voltage	3.5 V
Drain to Source Voltage (Vds)	100 V
Rise Time	386 ns
Input Capacitance (Ciss)	11500pF @25V(Vds)
Input Power (Max)	375 W
Fall Time	244 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	375 W
	Show
Size-Length	10.67 mm
Size-Width	11.33 mm
Size-Height	4.83 mm
Material	Silicon
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
