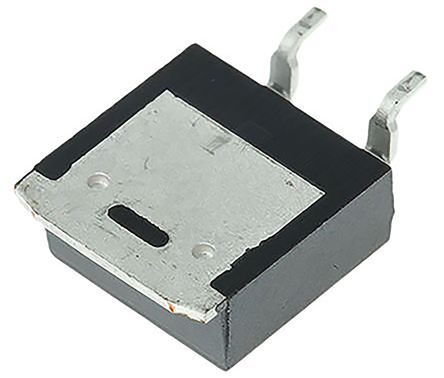

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

N-Channel 60V 21.5A (Ta), 50A (Tc) 3.1W (Ta), 127W (Tc) Surface Mount D-PAK (TO-252)

Show

FDD86540 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0034 Ω
Power Dissipation	127 W
Threshold Voltage	3.1 V
Drain to Source Voltage (Vds)	60 V
Rise Time	15 ns
Input Capacitance (Ciss)	4767pF @30V(Vds)
Fall Time	6.9 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	127 W
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.39 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
