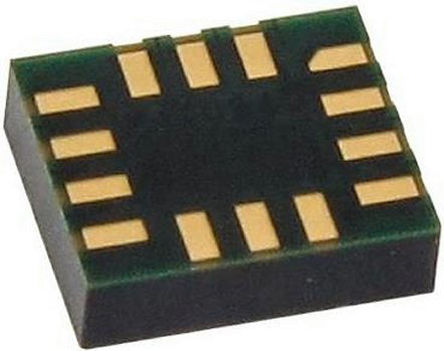

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LSM6DS3TR is a 3D Digital Accelerometer and 3D Gyroscope performing at 1.25mA (up to 1.6kHz ODR) in high-performance mode and enabling always-on low-power features for an optimal motion experience for the consumer. It supports main OS requirements, offering real, virtual and batch sensors with 8kbyte for dynamic data batching. The various sensing elements are manufactured using specialized micromachining processes, while the IC interfaces are developed using CMOS technology that allows the design of a dedicated circuit which is trimmed to better match the characteristics of the sensing element. 0.9mA in combo normal mode and 1.25mA in combo high-performance mode up to 1.6kHz power consumption.
Always on experience with low power consumption
Smart FIFO up to 8kbyte based on features set
Compliant with android K and L
Hard, soft ironing for external magnetic sensor corrections
±2/±4/±8/±16g Full scale
±125/±245/±500/±1000/±2000dps Full scale
1.71 to 3.6V Analogue supply voltage
Independent IOs supply (1.62V)
SPI/I²C serial interface with main processor data synchronization feature
Embedded temperature sensor

Show

LSM6DS3TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	LGA-14L
Supply Voltage (DC)	1.71V (min)
Supply Current	1.25 mA
Number of Positions	14 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	3.6 VDC
Supply Voltage (Min)	1.71 VDC
	Show
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
