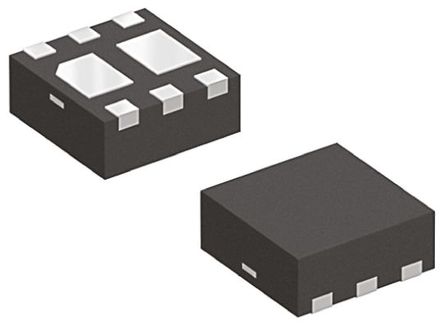

Image is for your reference only,please check specifications for details

FDFMA2P853 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC62564937
Category:
MOSFET, MOSFET Transistor
Package:
MicroFET-6
Datasheet:
Datasheet 3D Model
Description:
Small Signal Field-Effect Transistor, 2.2A I(D), 20V, 1Element, P-Channel, Silicon, Metal-oxide Semiconductor FET, MO-229VCCC, 2 X 2MM, 0.8MM HEIGHT, ROHS COMPLIANT, MICROFET-6
Stock Locations:
Availability:
2,901 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.57

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FDFMA2P853 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	MicroFET-6
Polarity	P-CH
Power Dissipation	1.4 W
Drain to Source Voltage (Vds)	20 V
Continuous Drain Current (Ids)	3A
Rise Time	11 ns
Breakdown Voltage (Collector to Emitter)	2.00 V
Input Capacitance (Ciss)	435pF @10V(Vds)
Input Power (Max)	700 mW
Fall Time	6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.4 W
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
