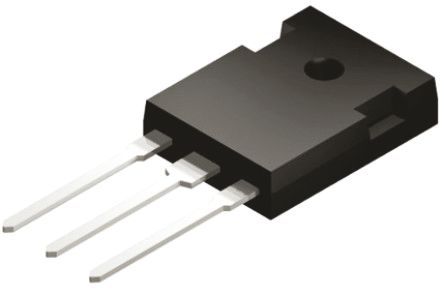

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FDH055N15A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	0.0048 Ω
Polarity	N-Channel
Power Dissipation	429 W
Threshold Voltage	2 V
Drain to Source Voltage (Vds)	150 V
Continuous Drain Current (Ids)	167A
Rise Time	67 ns
Input Capacitance (Ciss)	9445pF @75V(Vds)
Input Power (Max)	429 W
Fall Time	21 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	429W (Tc)
	Show
Size-Length	20.82 mm
Size-Width	15.87 mm
Size-Height	4.82 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
