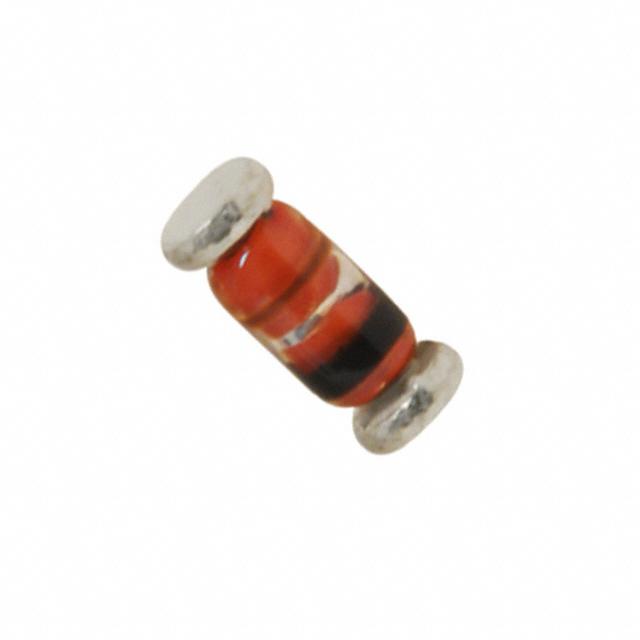

Image is for your reference only,please check specifications for details

FDLL4448 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC37745496
Category:
Small Signal Diode
Package:
LL-34
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDLL4448 Small Signal Diode, Single, 100V, 400mA, 1V, 4ns, 4A
Stock Locations:
Availability:
10,222 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDLL4448 is a Small Signal Diode for general usage and suitable for many different applications.
Cathode is denoted with a black band
-65 to 200°C Storage temperature range
-55 to 175°C Operating junction temperature range

Show

FDLL4448 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	LL-34
Voltage Rating (DC)	100 V
Current Rating	200 mA
Capacitance	4 pF
Output Current	200 mA
Number of Positions	2 Position
Forward Voltage	1V @100mA
Polarity	Standard
Power Dissipation	500 mW
Thermal Resistance	300℃/W (RθJA)
Reverse recovery time	4 ns
Forward Current	400 mA
Max Forward Surge Current (Ifsm)	4 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	300 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
Junction Temperature (Max)	175 ℃
	Show
Size-Length	3.6 mm
Size-Width	1.5 mm
Size-Height	1.5 mm
Weight	0.023514230016 kg
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
