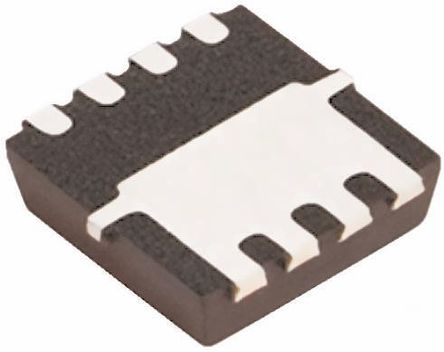

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

FDMC8200S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	PowerWDFN-8
Drain to Source Resistance (on) (Rds)	0.016 Ω
Polarity	Dual N-Channel
Power Dissipation	1.9 W
Threshold Voltage	2.3 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	18A/13A
Input Capacitance (Ciss)	660pF @15V(Vds)
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.9 W
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.75 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
