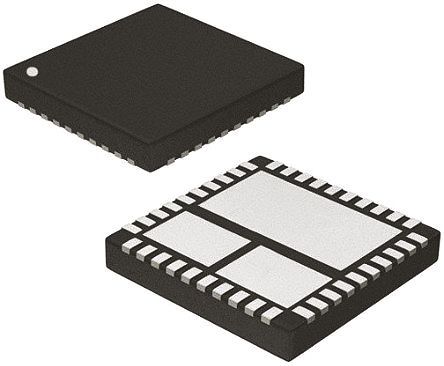

FDMF6704A - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC75733772
Category:
FET Driver
Package:
MLP-40
Datasheet:
Datasheet 3D Model
Description:
Half Bridge Based MOSFET Driver, 80A, 6 X 6MM, ROHS COMPLIANT, MO-220, SMD-40
Stock Locations:
Availability:
9,897 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Use the FDMF6704A power driver from Fairchild Semiconductor for fast switching. Its typical operating supply voltage is 12 V. This device has a maximum propagation delay time of 10(typ) ns. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This device has a typical operating supply voltage of 12 V. Its minimum operating supply voltage of 8 V, while its maximum is 14 V. This gate driver has an operating temperature range of -55 °C to 150 °C.

Show

FDMF6704A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	40 Pin
Case/Package	MLP-40
Frequency	1 MHz
Supply Voltage (DC)	3.00V (min)
Number of Outputs	1 Output
Supply Current	2 mA
Number of Positions	40 Position
Rise Time	25 ns
Input Voltage (Max)	5.5 V
Input Voltage (Min)	4.5 V
Output Current (Max)	35 A
Fall Time	20 ns
Fall Time (Max)	20 ns
Fall Time (Max)	25 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 14V
Supply Voltage (Max)	14 V
Supply Voltage (Min)	3 V
	Show
Size-Length	6 mm
Size-Width	6 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
