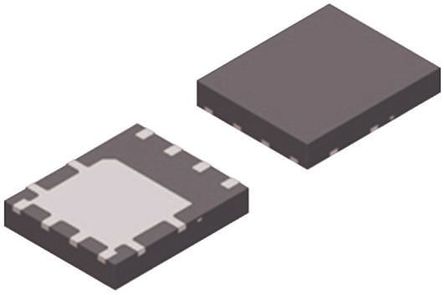

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Mosfet Array 2 N-Channel (Dual) Asymmetrical 25V 17.5A (Ta), 30A (Tc), 30A (Ta), 60A (Tc) 2.2W (Ta), 2.5W (Ta) Surface Mount 8-PQFN (5x6)
FDMS3624S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerTDFN-8 |
| Polarity | N-CH |
| Power Dissipation | 2200@Q 1|2500@Q 2mW |
| Drain to Source Voltage (Vds) | 25 V |
| Continuous Drain Current (Ids) | 17.5A/30A |
| Input Capacitance (Ciss) | 1570pF @13V(Vds) |
| Input Power (Max) | 1 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5 W |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.05 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
