Description

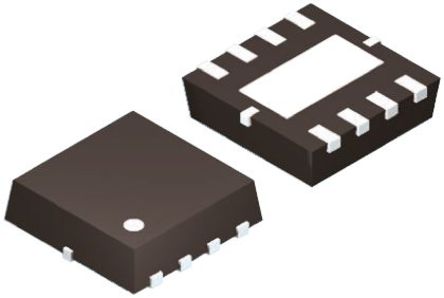

The FDPC8011S is an Asymmetric dual N-channel MOSFET includes two specialized N-channel MOSFETs in a dual package. The switch node has been internally connected to enable easy placement and routing of synchronous buck converters. The control MOSFET (Q1) and synchronous SyncFET™ (Q2) have been designed to provide optimal power efficiency. It is suitable for use with computing and general purpose point of load applications.
Low inductance packaging shortens rise/fall times, resulting in lower switching losses
Integration enables optimum layout for lower circuit inductance and reduced switch node ringing

Show

FDPC8011S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Drain to Source Resistance (on) (Rds)	0.0012 Ω
Polarity	Dual N-Channel
Power Dissipation	2 W
Threshold Voltage	1.4 V
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	13A/27A
Input Capacitance (Ciss)	1240pF @13V(Vds)
Input Power (Max)	800mW, 900mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.6 W
	Show
Size-Length	3.3 mm
Size-Width	3.3 mm
Size-Height	0.725 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
