Description
- The Power PCB Relay RT1 series from TE Connectivity are through hole PCB relays used for general purpose applications. These relays are used in boiler control, timers, garage door control, POS automation and interface modules.
- SPDT or SPST-NO contact configurations
- AC and DC coils available based on ordering
- Switching capacity of 12A or 16A at 250VAC based on versions
- 5KV/10mm isolation between coil and contact
- Ambient temperature of 85°C (DC coil)
- WG version has product in accordance to IEC 60335-1
- Reflow version for THR (Through-Hole Reflow) soldering process
- Compliance to VDE, UL, CSA and CQC standards
- Available in flux proof and wash tight version
- Class F coil isolation

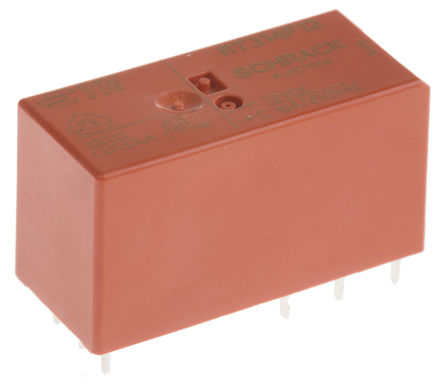

RT314F12 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | 600 |
| Current Rating | 16 A |
| Insulation Resistance | 10.0 GΩ |
| Input Voltage (DC) | 12.0 V |
| Contacts Type | SPDT |
| voltage rating | 8.40 V |
| Contact Current Rating | 16.0 A |
| Coil Voltage | 12 VDC |
| Coil Current | 50 mA |
| Coil Power (DC) | 600 mW |
| Coil Resistance | 240 Ω |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 4 KVA |
| Switching Current (Max) | 16 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 29 mm |
| Size-Width | 12.7 mm |
| Size-Height | 15.7 mm |
| Contact Material | Silver Nickel |
| Weight | 10.0 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410020 |
| ECCN Code | EAR99 |
