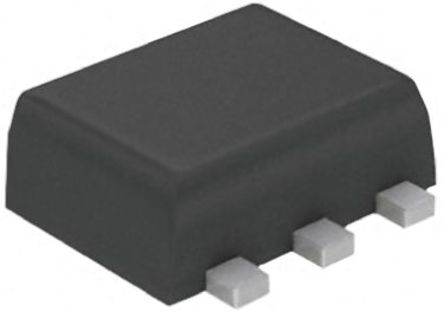

Image is for your reference only,please check specifications for details
- FDY6342L - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC105411168
-
Category:Power Management IC
-
Package:SC-89-6
-
Datasheet:Datasheet 3D Model
-
Description:FDY6342L 2.5V to 8V 0.83A Surface Mount Integrated Load Switch - SC89-6
-
Stock Locations:
-
Availability:9,273 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.43
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Get the quickest transition changes by implementing this FDY6342L power switch by Fairchild Semiconductor. This charge controller has single output. This charge controller has an input voltage of 2.5 to 8 V. This device has a maximum power dissipation of 625 mW. It features 3.5 Ohm switch on resistance. Its maximum power dissipation is 625 mW. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This charge controller has a minimum operating temperature of -55 °C and a maximum of 150 °C.
FDY6342L Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-89-6 |
| Power Rating | 0.625 W |
| Number of Outputs | 1 Output |
| Output Current | 0.83 A |
| Power Dissipation | 625 mW |
| Output Current (Max) | 830 mA |
| Output Current (Min) | 0.83 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 625 mW |
| Supply Voltage (Max) | 8 V |
| Supply Voltage (Min) | 2.5 V |
| Input Voltage | 2.5V ~ 8V |
| Show | |
| Size-Length | 1.7 mm |
| Size-Width | 1.2 mm |
| Size-Height | 0.42 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
