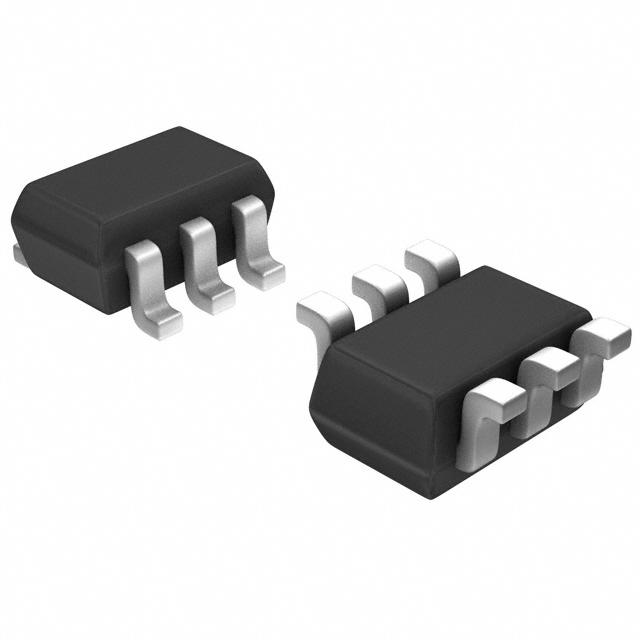

Image is for your reference only,please check specifications for details

FFB3946 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC60041150
Category:
BJT Transistor, BJT
Package:
SC-70-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FFB3946 Bipolar (BJT) Array Transistor, NPN, PNP, 40V, 300mW, 200mA, 100, SC-70
Stock Locations:
Availability:
4,689 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This complementary device is designed for use as a general purpose amplifier and switch The useful dynamic range extends to 100 mA as a switch and 100 MHz as an amplifier. Sourced from Process 23 and 66. See FFB3904 (NPN) and FFB3906 (PNP) for characteristics.

Show

FFB3946 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SC-70-6
Frequency	200 MHz
Voltage Rating (DC)	40.0 V
Current Rating	200 mA
Number of Positions	6 Position
Polarity	NPN, PNP
Power Dissipation	300 mW
Breakdown Voltage (Collector to Emitter)	40 V
Continuous Collector Current	0.2A
hFE Min	100 @10mA, 1V
hFE Max	300
Input Power (Max)	300 mW
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
