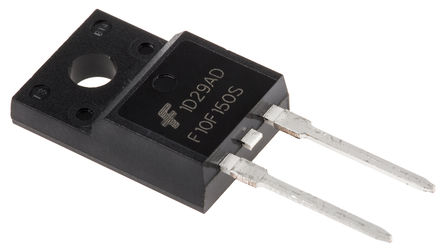

Image is for your reference only,please check specifications for details

FFPF10F150STU - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC38975545
Category:
TVS Diode
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FFPF10F150STU Standard Power Diode, 1.5kV, 10A, Single, 1.6V, 170ns, 100A
Stock Locations:
Availability:
9,900 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.66

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FFPF10F150STU is a Damper Diode for use in horizontal deflection circuits. The damper diode features high speed recovery, high reliability and low forward voltage.
3°C/W Junction to case maximum thermal resistance
14V Maximum forward recovery voltage

Show

FFPF10F150STU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	1.50 kV
Current Rating	10.0 A
Output Current	≤10.0 A
Forward Voltage	1.6V @10A
Polarity	Standard
Thermal Resistance	3℃/W (RθJC)
Reverse recovery time	170 ns
Forward Current	10 A
Max Forward Surge Current (Ifsm)	100 A
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	10 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	10.16 mm
Size-Width	4.7 mm
Size-Height	9.19 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
