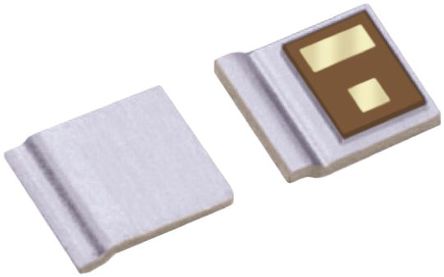

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FK3P02110L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	PMCP-1816-Z1
Drain to Source Resistance (on) (Rds)	20 mΩ
Polarity	N-CH
Power Dissipation	200 mW
Threshold Voltage	1.4 V
Drain to Source Voltage (Vds)	24 V
Breakdown Voltage (Drain to Source)	24 V
Continuous Drain Current (Ids)	6A
Input Capacitance (Ciss)	1500pF @10V(Vds)
Fall Time	2.3 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	750 mW
	Show
Size-Length	1.6 mm
Size-Width	1.8 mm
Size-Height	0.33 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status
