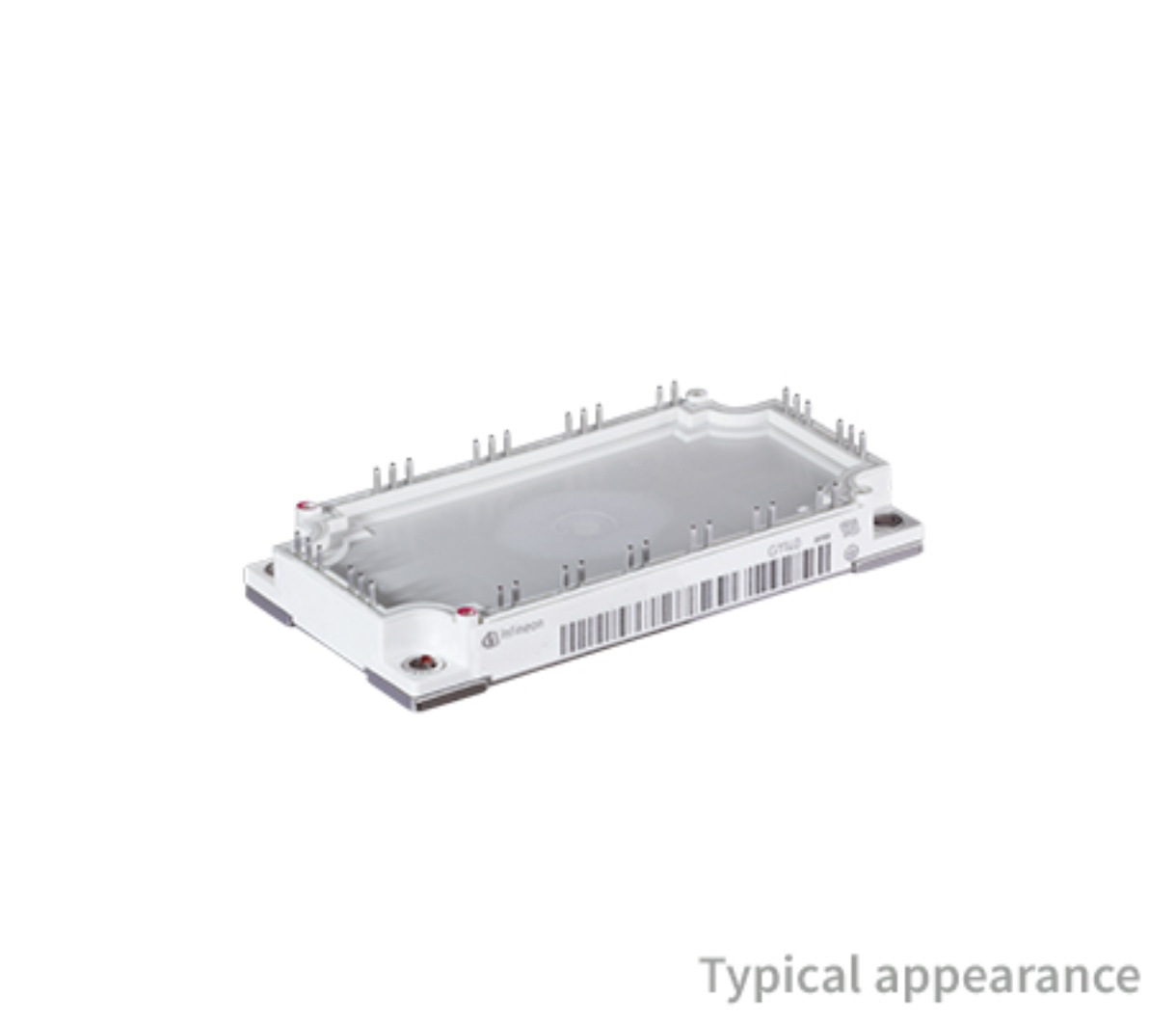

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Low stray inductance module design * High reliability and power density * Copper base plate for optimized heat spread * Solderable pins * Low switching losses * High switching frequency * RoHS-compliant modules

Show

FP50R12KE3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	35 Pin
Case/Package	EconoPIM-3
Power Rating	270 W
Power Dissipation	270 W
Breakdown Voltage (Collector to Emitter)	1.20 kV
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	270000 mW
	Show
Size-Length	122 mm
Size-Width	62 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Box
RoHS	Compliant with Exemption
Lead-Free Status	Contains Lead
ECCN Code	EAR99
