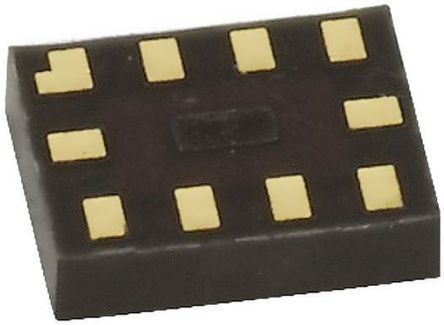

Image is for your reference only,please check specifications for details

FSA2257L10X - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC69865200
Category:
Interface IC, Interface Controller
Package:
UFQFN-10
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSA2257L10X Analog Switch, Dual Channel, SPDT, 2Channels, 1.15Ω, 1.65V to 5.5V, MicroPak, 10Pins
Stock Locations:
Availability:
9,213 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Low RON Low Voltage Dual SPDT Bi-Directional Analog Switch The FSA2257 is a high performance bi-directional dual Single Pole Double Throw (SPDT) analog switch.This switch can be configured as either a multiplexer or a demultiplexer by select pins. The select input is TTL level compatible

Show

FSA2257L10X Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	UFQFN-10
Supply Voltage (DC)	5.50 V
Number of Outputs	4 Output
Input Voltage (DC)	5.50 V
Contacts Type	SPDT
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Bits	2 Bit
Bandwidth	350 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	200 MHz
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.1 mm
Size-Width	1.6 mm
Size-Height	0.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
