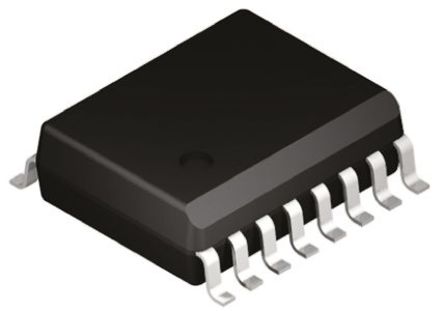

Image is for your reference only,please check specifications for details
- FSAL200QSCX - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC69359755
-
Category:Multiplexer IC
-
Package:QSOP
-
Datasheet:Datasheet 3D Model
-
Description:FAIRCHILD SEMICONDUCTOR FSAL200QSCX 2:1 Analog Multiplexer/Demultiplexer IC, 4Circuits, 12Ω, 3V - 5.5V, QSOP-16
-
Stock Locations:
-
Availability:4,004 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.07
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FSAL200QSCX is a rail-to-rail quad 2:1 high-speed CMOS TTL-compatible Analog Multiplexer/Demultiplexer Switch. The low ON resistance of the switch allows inputs to be connected to outputs without adding propagation delay or generating additional ground bounce noise. When OE# is LOW, the select pin connects the A Port to the selected B Port output. When OE# is HIGH, the switch is OPEN and a high-impedance state exists between the two ports. Route communications signals include 10/100 Ethernet, 100VG - AnyLAN, ATM25, SONET OCI 51.8Mbps, USB1.1, T1/E1, Token Ring 4/16Mbps.
- Typical 6R switch connection between two ports
- Minimal propagation delay through the switch
- Low ICC
- Zero bounce in flow-through mode
- Control inputs compatible with TTL level
- Rail-to-rail signal handling
FSAL200QSCX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QSOP |
| Supply Voltage (DC) | 3.00 V (min) |
| Input Voltage (DC) | 5.50 V |
| Output Voltage | 5.50 V (max) |
| Contacts Type | SPDT |
| Number of Circuits | 4 Circuit |
| Power Dissipation | 500mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR), Cut Tape (CT) |
| RoHS | Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
