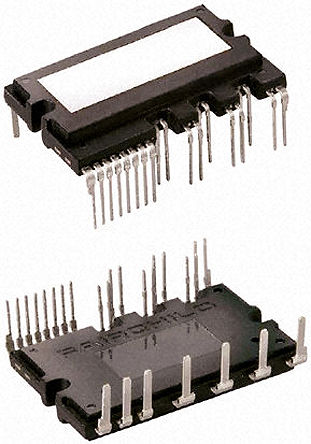

FSBB20CH60F - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC29268033
Category:
Motor Driver
Package:
SPM27-CA
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FSBB20CH60F Intelligent Power Module (IPM), SPM, IGBT, 600V, 20A, 2500Vrms, SPMCA-027, SPM3
Stock Locations:
Availability:
48 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.58

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FSBB20CH60F is a Motion SPM® Intelligent Power Module, provides a fully-featured, high-performance inverter output stage for AC Induction, BLDC and PMSM motors. Integrate optimized gate drive of the built-in IGBTs to minimize EMI and losses, while also providing multiple on-module protection features including under-voltage lockouts, over-current shutdown and fault reporting. The built-in, high-speed HVIC requires only a single supply voltage and translates the incoming logic-level gate inputs to the high-voltage, high-current drive signals required to properly drive the module"s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms. 600V/20A 3-phase IGBT inverter with integral gate drivers and protection.
Built-in thermal shutdown function
Low-loss, short-circuit rated IGBTs
Dedicated Vs. pins simplify PCB layout
Separate open-emitter pins from low-side IGBTs for three-phase current sensing
Single-grounded power supply
2500Vrms/minute Isolation rating

Show

FSBB20CH60F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	27 Pin
Case/Package	SPM27-CA
Frequency	20 kHz
Supply Voltage (DC)	300V (min)
Number of Outputs	1 Output
Output Voltage	≤4.50 V
Output Current	20 A
Power Dissipation	61 W
Isolation Voltage	2500 Vrms
Breakdown Voltage (Collector to Emitter)	600 V
Output Voltage (Max)	4.5 V
Output Current (Max)	5 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	13.5V ~ 16.5V
Supply Voltage (Min)	300 V
	Show
Size-Length	44.2 mm
Size-Width	27 mm
Size-Height	5.7 mm
Operating Temperature	-20℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
