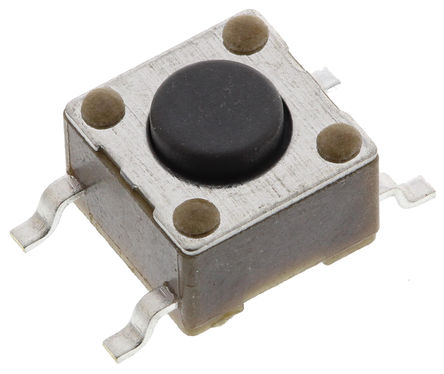

Image is for your reference only,please check specifications for details

FSM2JSMATR - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC25691496
Category:
Tactile Switch, Jog Switch
Datasheet:
Datasheet 3D Model
Description:
ALCOSWITCH - TE CONNECTIVITY FSM2JSMATR Tactile Switch, Non Illuminated, 12V, 50mA, 160 gf, SMD, FSMJSMA Series
Stock Locations:
Availability:
10,340 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

FSM2JSMATR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Voltage Rating (DC)	24 V
Current Rating	50 mA
Number of Rows	2 Row
Contact Current Rating	50mA @24VDC
Current Rating (Max)	0.05A @24VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-20 ℃
Voltage Rating	24 VDC
Voltage Rating (DC Max)	24 V
Maximum Contact Resistance (Max)	100 mΩ
	Show
Size-Length	10 mm
Size-Width	10 mm
Size-Height	4.55 mm
Contact Material	Copper Alloy
Operating Temperature	-20℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HTS Code	8536509032
ECCN Code	EAR99
