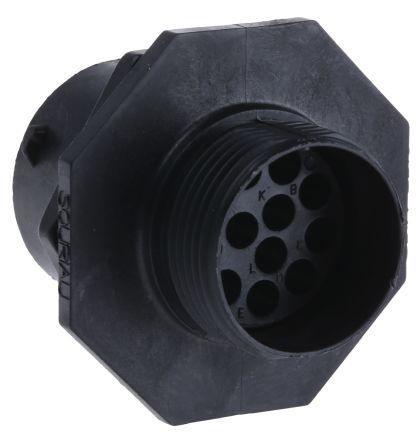

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UTS71412S is a 12-pole Female Insert Jam Nut Receptacle with crimp contacts. The bayonet coupling system makes it simple to use. The Trim Trio® UTS series circular connector has 14-12 insert arrangement and thermoplastic body. A 1/3 twist of the coupling ring, connectors are mated with an audible and sensitive click. Based on multiple power and signal connectors and offers everything from box mounted receptacles and cable mounted plugs to cable mounted in-line and PCB mounted receptacles. Almost all ways to accommodate wires exist crimp, solder and screw termination.
IP68/69K Protection rating (dynamic)
100% UV-resistant

Show

UTS71412S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Number of Contacts	12 Contact
Gender	Female
Contact Plating	Gold
Current Rating	13 A
Insulation Resistance	5000 MΩ
Flammability Rating	UL 94 V-0
Number of Positions	12 Position
Number of Mating Cycles	250 Cycle
Current Rating (Max)	13 A
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	125 VAC
Voltage Rating	125 VAC
	Show
Size-Height	34.9 mm
Housing Color	Black
Color	Black
Material	Thermoplastic
Operating Temperature	-40℃ ~ 105℃
Housing Material	Plastic
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
