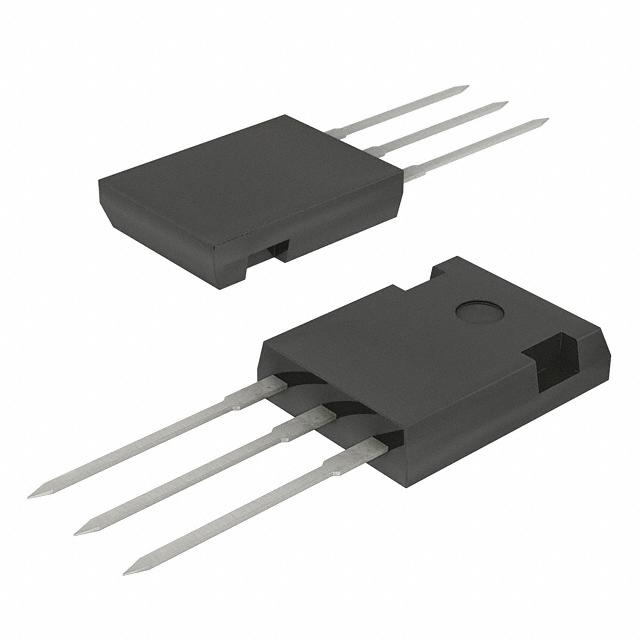

Image is for your reference only,please check specifications for details
Updated at 31/10/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Trans MOSFET N-CH 100V 75A 3-Pin(3+Tab) TO-247AD
IXTH75N10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Voltage Rating (DC) | 100 V |
| Current Rating | 75.0 A |
| Number of Positions | 3 Position |
| Drain to Source Resistance (on) (Rds) | 0.02 Ω |
| Polarity | N-Channel |
| Power Dissipation | 300 W |
| Threshold Voltage | 4 V |
| Input Capacitance | 4.50 nF |
| Gate Charge | 260 nC |
| Drain to Source Voltage (Vds) | 100 V |
| Continuous Drain Current (Ids) | 75.0 A |
| Input Capacitance (Ciss) | 4500pF @25V(Vds) |
| Input Power (Max) | 300 W |
| Operating Temperature (Max) | 150 ℃ |
| Power Dissipation (Max) | 300W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
