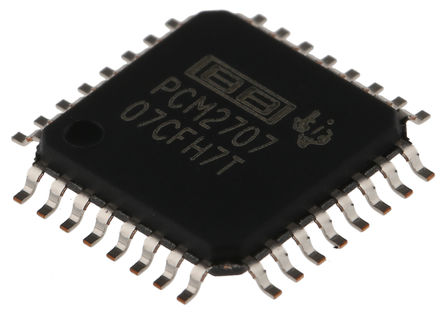

Image is for your reference only,please check specifications for details

PCM2707PJT - TI
Manufacturer:
TI
ManyChip's Part#:
MC43090362
Category:
Digital to Analog, DAC IC
Package:
TQFP-32
Datasheet:
Datasheet 3D Model
Description:
Digital to Analogue Converter, 16Bit, 48KSPS, Serial, -300mV to 6.5V, TQFP, 32Pins
Stock Locations:
Availability:
1,106 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 10.94

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM2707PJT is a 98dB SNR stereo USB2.0 FS Digital to Analogue Converter with line-out and S/PDIF output bus/self-powered. The USB-protocol controller works with no software code, but USB descriptors can be modified in some parts through the use of an external ROM, SPI or on request. The PCM2707 employs SpAct architecture, its unique system that recovers the audio clock from USB packet data. On-chip analogue PLLs with SpAct enable playback with low clock jitter.
On-chip USB interface
Partially programmable descriptors
Adaptive isochronous transfer for playback
On-chip clock generator with single 12MHz clock source
Single-ended voltage output
Green product and no Sb/Br
This IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

PCM2707PJT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	32 Pin
Case/Package	TQFP-32
Supply Voltage (DC)	3.30 V, 5.00 V
Number of Outputs	2 Output
Supply Current	35 mA
Number of Channels	2 Channel
Number of Positions	32 Position
Number of Bits	16 Bit
Power Dissipation	0.242 W
Sample Rate	48 ksps
Output Power	175 mW
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	242 mW
Number of DACs	2 DAC
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7 mm
Size-Width	7 mm
Size-Height	1 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
