Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

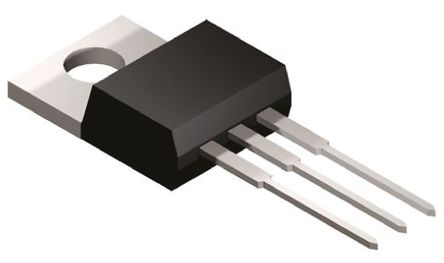

Case/Package | TO-220-3 |
Voltage Rating (DC) | 100 V |
Current Rating | 20.0 A |
Number of Positions | 3 Position |
Forward Voltage | 770mV @10A |
Forward Current | 20 A |
Max Forward Surge Current (Ifsm) | 150 A |
Maximum Forward Voltage (Max) | 770 mV |
Forward Current (Max) | 20 A |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -65 ℃ |
Show | |
Size-Length | 10.1 mm |
Size-Width | 4.7 mm |
Size-Height | 9.4 mm |
Operating Temperature | -65℃ ~ 150℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
ECCN Code | ECL99 |
