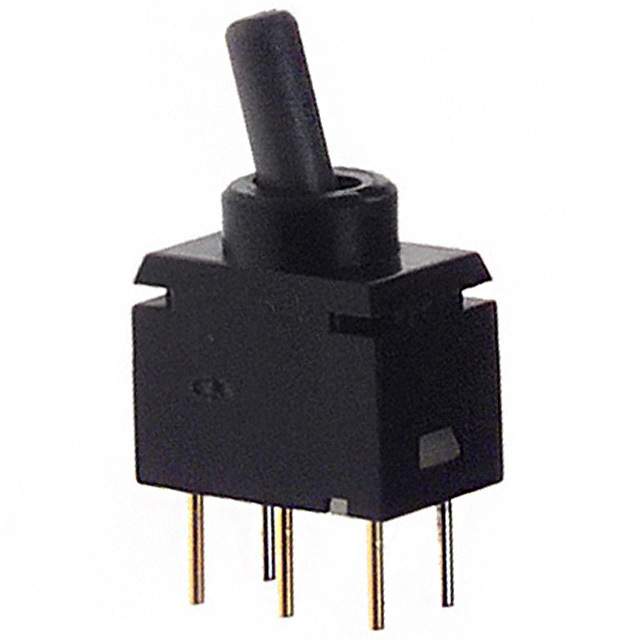

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Washable Through-hole Mount Ultra-Miniatures.
* Ultra-miniature size allows high-density mounting, and extreme light weight (25 grams) makes these switches ideal for handheld equipment.
* Fully sealed body construction prevents contact contamination, and allows time and money-saving automated soldering and washing.
* Award-winning STC contact mechanism offers benefits unavailable in conventional mechanisms: smooth, positive detent actuation, increased contact stability, and unparalleled logic-level reliability.
* Tape-reel and stick-tube packaging allow rapid automated surface mount device placement.
* Heat-resistant resin used for housing, base, and actuator of SMD allows for vapor-phase and infrared reflow soldering.
* Molded-in, epoxy sealed terminals lock out flux, solvents, and other contaminants.
* .100" X .100" terminal spacing conforms to standard PCB grid spacing. Round terminals facilitate easier through-hole mounting on PCBs.
* Gull-wing terminals on SMDs provide mechanical stability during soldering and simplified solder-joint inspection.
* Illuminated toggles are available.

Show

G12AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Contact Plating	Gold
Voltage Rating (DC)	28 V
Actuator Type	Standard
Voltage Rating (AC)	28 V
Current Rating	100 mA
Insulation Resistance	500 MΩ
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPDT
Number of Positions	2 Position
Current Rating (Max)	0.1A @28VAC, 28VDC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	28 VDC
Maximum Contact Resistance (Max)	80 mΩ
	Show
Size-Length	7 mm
Size-Width	4.5 mm
Size-Height	10.8 mm
Contact Material	Phosphor Bronze
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
