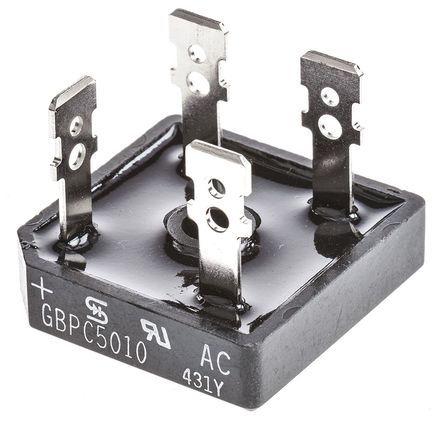

GBPC5010 - Taiwan Semiconductor
Manufacturer:
Taiwan Semiconductor
ManyChip's Part#:
MC83462484
Category:
Bridge Rectifier
Package:
GBPC-4
Datasheet:
Datasheet 3D Model
Description:
TAIWAN SEMICONDUCTOR GBPC5010 Bridge Rectifier Diode, Single, 1kV, 50A, Module, 1.1V, 4Pins
Stock Locations:
Availability:
614 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.18

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The GBPC5010 is a single-phase glass passivated Bridge Rectifier with plastic body and universal 4-way terminals. The bridge rectifier feature integrally moulded heatsink provide very low thermal resistance for maximum heat dissipation, surge overload rating to 400A and isolated voltage from case to terminal over 2500V.
<0.2µA Typical reverse current
700V Maximum RMS voltage
1000V Maximum DC blocking voltage
10mW Maximum reverse DC current at rated DC blocking voltage per element
1.5°C/W Typical thermal resistance

Show

GBPC5010 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	4 Pin
Case/Package	GBPC-4
Forward Current	50 A
Max Forward Surge Current (Ifsm)	400 A
Maximum Forward Voltage (Max)	1.1 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
	Show
Size-Length	29 mm
Size-Width	29 mm
Size-Height	7.87 mm
Product Lifecycle Status	Active
Packaging	Each
RoHS	Non-Compliant
Lead-Free Status	Lead Free
