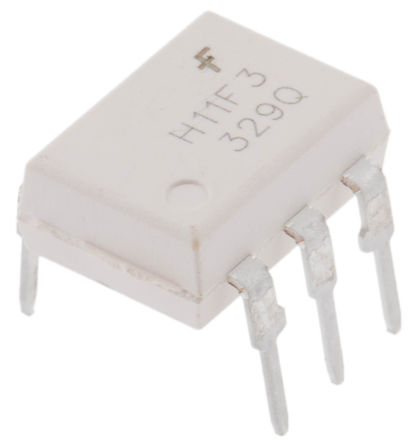

H11F3M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC101422070
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
DIP6 Through Hole Single Channel 15V 7500VAC (Pk) Photo FET Optocoupler
Stock Locations:
Availability:
266 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description
The H11FXM series consists of a Gallium-Aluminum Arsenide IRED emitting diode coupled to a symmetrical bilateral silicon photo-detector. The detector is electrically isolated from the input and performs like an ideal isolated FET designed for distortion-free control of low level AC and DC analog signals. The H11FXM series devices are mounted in dual in-line packages.
Features
As a remote variable resistor:
■≤100Ωto ≥300MΩ
■≥99.9% linearity
■≤15pF shunt capacitance
■≥100GΩI/O isolation resistance
As an analog switch:
■Extremely low offset voltage
■60 Vpk-pksignal capability
■No charge injection or latch-up
■ton, toff≤15µS
■UL recognized (File #E90700)
Applications
As a remote variable resistor:
■Isolated variable attenuator
■Automatic gain control
■Active filter fine tuning/band switching As an analog switch:
■Isolated sample and hold circuit
■Multiplexed, optically isolated A/D conversion

Show

H11F3M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.3 V
Power Dissipation	0.3 W
Isolation Voltage	7.5 kV
Forward Current	60 mA
Output Voltage (Max)	15 V
Input Current (Min)	60 mA
Reverse Breakdown Voltage	5 V
Maximum Forward Voltage (Max)	1.75 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
	Show
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
