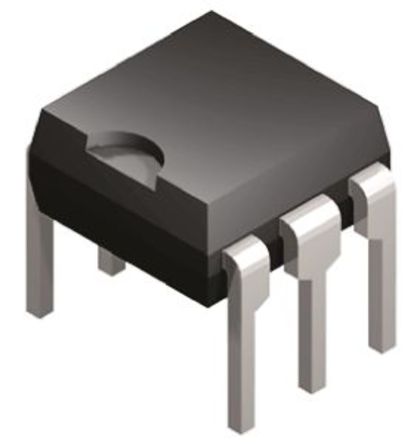

H11G2 - ISOCOM Components
Manufacturer:
ISOCOM Components
ManyChip's Part#:
MC38933396
Category:
Optocoupler, Optoisolator
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
ISOCOM H11G2 Optocoupler, Darlington Output, 1Channel, DIP, 6Pins, 50mA, 5.3kV, 1000%
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The H11G2 is a 1-channel 6-pin Optically Coupled Isolator consisting of a gallium arsenide infrared emitting diode and a silicon Darlington which has an integral base-emitter resistor to optimize switching speed and elevated temperature characteristics.
Low collector dark current - 100nA maximum at 80VCE

Show

H11G2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP
Output Voltage	80.0 V
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.2 V
Input Current	10.0 mA
Rise Time	100 µs
Isolation Voltage	5.3 kV
Input Current (Min)	50 mA
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	50 mA
Fall Time	20 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350 mW
	Show
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
