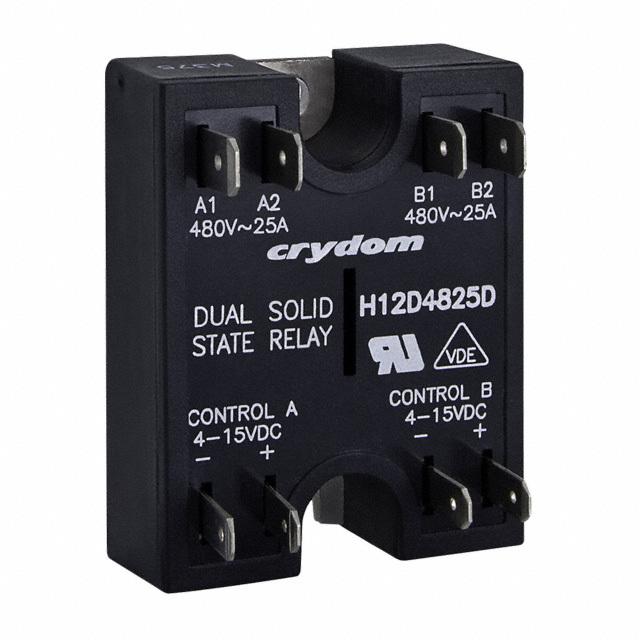

Image is for your reference only,please check specifications for details
Updated at 13/03/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Two totally independent AC output relays come in a single standard panel mount package. Utilizing an AC switch
- output with internal snubber, relays provide greater protection against false triggering. Model choices include zero
- voltage or random turn-on (phase controllable) switching.
- • Zero Voltage and Random
- Turn-On Switching
- • SCR Output
- • Industry Standard Package
- • Panel Mount
H12D4825DE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw, Panel |
| Number of Pins | 8 Pin |
| Case/Package | Hockey Puck |
| Current Rating | 25 A |
| Load Current | 25 A |
| Input Current | 13 mA |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 530 V |
| Output Current (Max) | 25 A |
| Input Current (Min) | 15 mA |
| Load Current (Min) | 150 mArms |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 15V ~ 32V |
| Show | |
| Operating Temperature | -40℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
