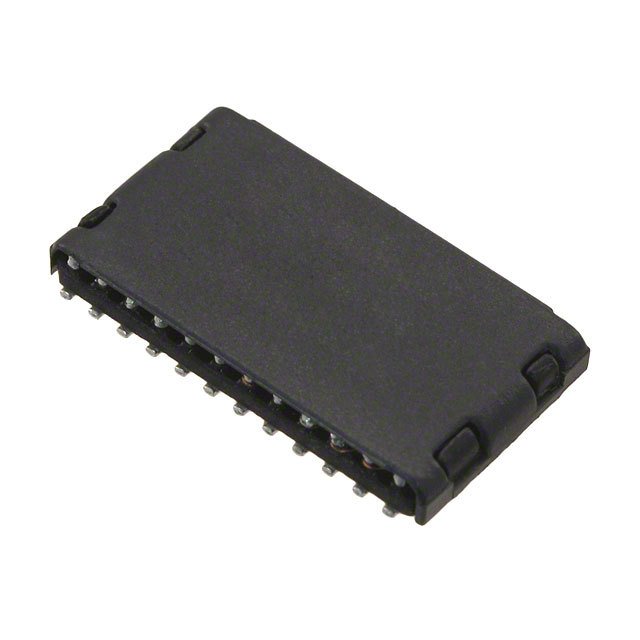

Image is for your reference only,please check specifications for details
- H5120NL - Pulse Electronics
-
Manufacturer:Pulse Electronics
-
ManyChip's Part#:MC4132793
-
Category:Transformer
-
Datasheet:Datasheet 3D Model
-
Description:Audio Transformers / Signal Transformers 1000BaseT SMD NonPoE 350uH 0.65Ω 1Port
-
Stock Locations:
-
Availability:1,265 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 8.13
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- H5120NL is manufactured by Pulse Electronics and is categorized in the Pulse Transformers category. H5120NL is described as MODULE XFORMR SNGL GIGABIT SMD. Perfect Parts is a supplier of Transformers and other Miscellaneous.
H5120NL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Current Rating | 8 mA |
| Number of Channels | 1 Channel |
| Inductance | 350 µH |
| Isolation Voltage | 1.5 kV |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Minimum CMRR Range | -33dB @100MHz |
| Resistance (DC Max) | 65 mΩ |
| Show | |
| Size-Length | 16.51 mm |
| Size-Width | 9.14 mm |
| Size-Height | 2.08 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
