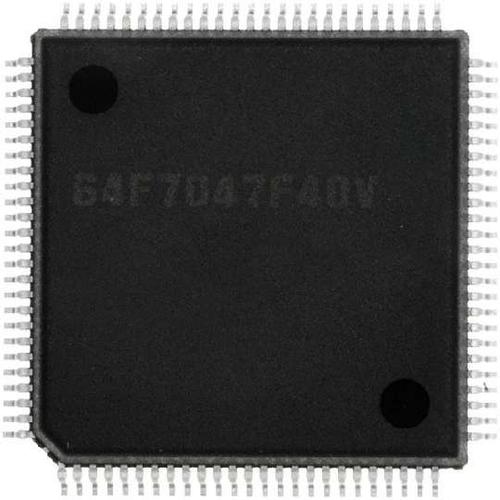

Image is for your reference only,please check specifications for details
- HD64F7047FW40V - Renesas Electronics
-
Manufacturer:Renesas Electronics
-
ManyChip's Part#:MC153072166
-
Category:Microcontroller, MCU IC
-
Package:BFQFP-100
-
Datasheet:Datasheet 3D Model
-
Description:Микроконтроллер 32-битный SuperH RISC, 256 КБ Flash, 5 В, 100-контактный PQFP
-
Stock Locations:
-
Availability:270 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 28.22
Updated at 16/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Overview
- The SH7047 group single-chip RISC (Reduced Instruction Set Computer) microprocessors integrate a Renesas-original RISC CPU core with peripheral functions required for system configuration.
- The SH7047 group CPU has a RISC-type instruction set. Most instructions can be executed in one state (one system clock cycle), which greatly improves instruction execution speed. In addition, the 32-bit internal-bus architecture enhances data processing power. With this CPU, it has become possible to assemble low cost, high performance/high-functioning systems, even for applications that were previously impossible with microprocessors, such as real-time control, which demands high speeds.
- In addition, the SH7047 group includes on-chip peripheral functions necessary for system configuration, such as large-capacity ROM and RAM, timers, a serial communication interface (SCI), Controller area network 2 (HCAN2), an A/D converter, an interrupt controller (INTC), and I/O ports. ROM and SRAM can be directly connected to the SH7047 MCU by means of an external memory access support function. This greatly reduces system cost.
- Features
- • Central processing unit with an internal 32-bit RISC (Reduced Instruction Set Computer) architecture
- - Instruction length: 16-bit fixed length for improved code efficiency
- - Load-store architecture (basic operations are executed between registers)
- - Sixteen 32-bit general registers
- - Five-stage pipeline
- - On-chip multiplier: multiplication operations (32 bits × 32 bits → 64 bits) executed in two to four cycles C language-oriented 62 basic instructions
- • Various peripheral functions
- - Data transfer controller (DTC)
- - Multifunction timer/pulse unit (MTU)
- - Motor management timer(MMT)
- - Compare match timer (CMT)
- - Watchdog timer (WDT)
- - Asynchronous or clocked synchronous serial communication interface(SCI)
- - 10-bit A/D converter
- - Clock pulse generator
- - Controller area network2 (HCAN2)
- - User break controller (UBC)
- - High-performance user debug interface (H-UDI)
- - Advanced user debugger (AUD)
HD64F7047FW40V Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 100 Pin |
| Case/Package | BFQFP-100 |
| Clock Speed | 40.0 MHz |
| RAM Memory Size | 12K x 8 |
| Access Time | 40.0 µs |
| Number of UARTs | 3 UART |
| Number of ADCs | 1 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
