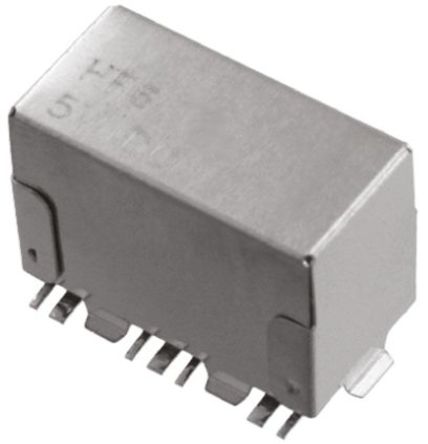

Image is for your reference only,please check specifications for details
Updated at 06/03/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HF6 series High Frequency Relay with 1-form-C and 1 CO contacts.
- Y-design
- Immersion cleanable
- Small dimensions
- Frequency range DC to 6GHz
- 50R Impedance
- Low power consumption (
HF6 56 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Contact Plating | Gold |
| Insulation Resistance | 100 MΩ |
| Contacts Type | SPDT |
| Contact Resistance | 100 mΩ |
| Power Consumption | 146 mW |
| Contact Current Rating | 2 A |
| Coil Voltage | 12 VDC |
| Coil Current | 11.67 mA |
| Coil Power (DC) | 140 mW |
| Coil Resistance | 1.028 kΩ |
| Coil Voltage (DC) | 12 V |
| Coil Power | 140 mW |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 9.4 mm |
| Size-Height | 10.5 mm |
| Contact Material | Silver |
| Operating Temperature | -55℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| REACH SVHC Compliance | No SVHC |
