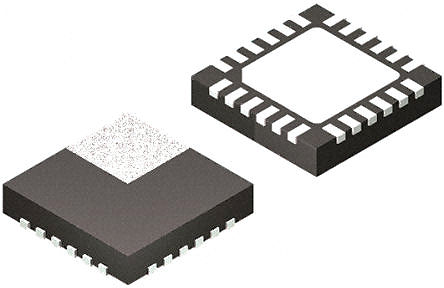

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

* Pout: +4.5 dBm * Phase Noise: -115 dBc/Hz @100 KHz * No External Resonator Needed * Single Supply: 3V @ 35 mA * QFN Leadless SMT Package, 16 mm2

Show

HMC385LP4E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	QFN-24
Frequency	2.25GHz ~ 2.5GHz
Supply Current	35 mA
Test Frequency	2.5 GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	3 V
	Show
Size-Length	4.1 mm
Size-Width	4.1 mm
Size-Height	1 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
