HMC442 ADI - Amplifier chip - ManyChip Electronics

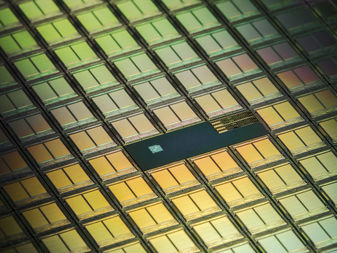

Image is for your reference only,please check specifications for details

HMC442 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC6989942
Category:
Amplifier chip
Package:
Die
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC442 СВЧ-усилитель (ИС), коэффициент усиления 16дБ / шум 6дБ, диапазон 17.5ГГц - 25.5ГГц, 4.5В до 5.5В, желатиновая упаковка (Gel Pack)
Stock Locations:
Availability:
1,464 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 63.18

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Описание продукта
HMC442 представляет собой высокоэффективный GaAs PHEMT ММИС усилитель мощности среднего уровня, работающий в диапазоне от 17,5 до 25,5 ГГц. HMC442 обеспечивает коэффициент усиления 15 дБ, мощность насыщения +23 дБм и КПД 25% PAE при напряжении питания +5 В. Кристалл усилителя может быть легко интегрирован в многокристальные модули (МКМ) благодаря своим малым размерам. Все данные получены при испытании кристалла в 50-омном измерительном стенде с подключением проволочными перемычками диаметром 0,025 мм (1 мил) и минимальной длиной 0,31 мм (12 мил).
**Области применения**
Радиорелейные линии типа «точка-точка»
Радиорелейные линии типа «точка-многоточка»
VSAT-терминалы
### Особенности и преимущества
Мощность насыщения: +23 дБм при КПД 25% PAE
Коэффициент усиления: 15 дБ
Напряжение питания: +5 В
Согласование входа/выхода на 50 Ом
Размер кристалла: 1,03 x 1,13 x 0,1 мм

Show

HMC442 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	Die
Frequency	17.5GHz ~ 25.5GHz
Supply Voltage (DC)	4.50V (min)
Supply Current	85 mA
Number of Channels	1 Channel
Power Dissipation	0.64 W
Gain	16 dB
Test Frequency	17.5GHz ~ 21GHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	640 mW
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
