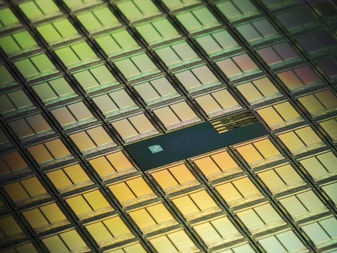

Image is for your reference only,please check specifications for details

HMC578 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC9279903
Category:
RF Module, IC, Accessory
Package:
Die
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC578 RF GaAs MMIC Frequency Multiplier IC, 4.5V to 5.5V, 23GHz to 33GHz, HQFN-12
Stock Locations:
Availability:
257 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 45.99

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Product Details
The HMC578 die is a x2 active broadband frequency multiplier utilizing GaAs PHEMT technology. When driven by a +3 dBm signal, the multiplier provides +17 dBm typical output power from 24 to 33 GHz. The Fo and 3Fo isolations are >25 dBc and >36 dBc respectively at 28 GHz. The HMC578 is ideal for use in LO multiplier chains for Pt to Pt & VSAT Radios yielding reduced parts count vs. traditional approaches. The low additive SSB Phase Noise of -132 dBc/Hz at 100 kHz offset helps maintain good system noise performance.
Applications
Clock Generation Applications:
SONET OC-192 & SDH STM-64
Point-to-Point & VSAT Radios
Test Instrumentation
Military EW / Radar
Space
### Features and Benefits
High Output Power: +17 dBm
Low Input Power Drive: 0 to +6 dBm
Fo Isolation: >25 dBc @ Fout= 28 GHz
100 kHz SSB Phase Noise: -132 dBc/Hz
Single Supply: +5V @ 81 mA
Die Size: 1.18 x 1.23 x 0.1 mm

Show

HMC578 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	6 Pin
Case/Package	Die
Frequency	23GHz ~ 33GHz
Supply Voltage (DC)	4.50V (min)
Power Dissipation	703 mW
Output Power	17 dBm
Input Power (Max)	6 dBm
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	703 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
