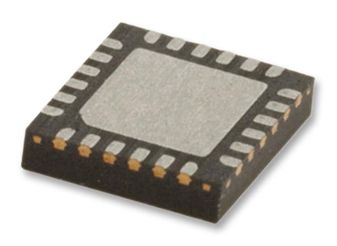

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * 0.25 dB LSB Steps to 15.75 dB * Power-Up State Selection * High Input IP3: +53 dBm * Low Insertion Loss: 1.8 dB @ 2.0 GHz * TTL/CMOS Compatible, Serial, Parallel or Latched Parallel Control * ±0.1 dB Typical Step Error * Single +3V or +5V Supply * 24 Lead 4x4mm SMT Package: 16mm²
HMC792ALP4E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | QFN-24 |
| Power Rating | 715 mW |
| Number of Channels | 1 Channel |
| Number of Positions | 24 Position |
| Number of Bits | 6 Bit |
| Power Dissipation | 0.715 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 715 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
