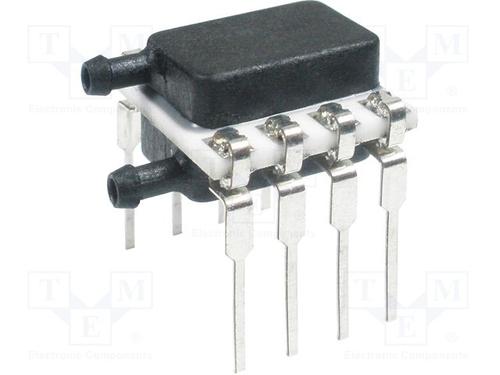

Image is for your reference only,please check specifications for details
- HSCDRRN001PDAA5 - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC15554214
-
Category:Pressure Sensor
-
Package:DIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Датчик давления дифференциальный -1psi до 1psi, 8-контактный DIP-модуль
-
Stock Locations:
-
Availability:317 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 42.06
Updated at 23/08/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Быстро измеряйте и реагируйте на изменения давления газа или жидкости в вашей системе с помощью этого датчика давления для монтажа на плату HSCDRRN001PDAA5 от Honeywell. Это устройство имеет минимальное рабочее напряжение питания 4,75 В и максимальное 5,25 В. Диапазон рабочих температур данной детали составляет от -20 °C до 85 °C. Время отклика — 0,46 мс. Его рабочий диапазон давления — от -1 до 1 psi, а максимальное давление перегрузки — 10 psi.
HSCDRRN001PDAA5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP-8 |
| Voltage Rating (DC) | 5.00 V |
| Supply Current | 2.00 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Accuracy | ±0.25 % |
| Supply Voltage | 4.75V ~ 5.25V |
| Supply Voltage (Max) | 5 V |
| Show | |
| Size-Height | 6.16 mm |
| Operating Temperature | -20℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 9026204000 |
| ECCN Code | EAR99 |
