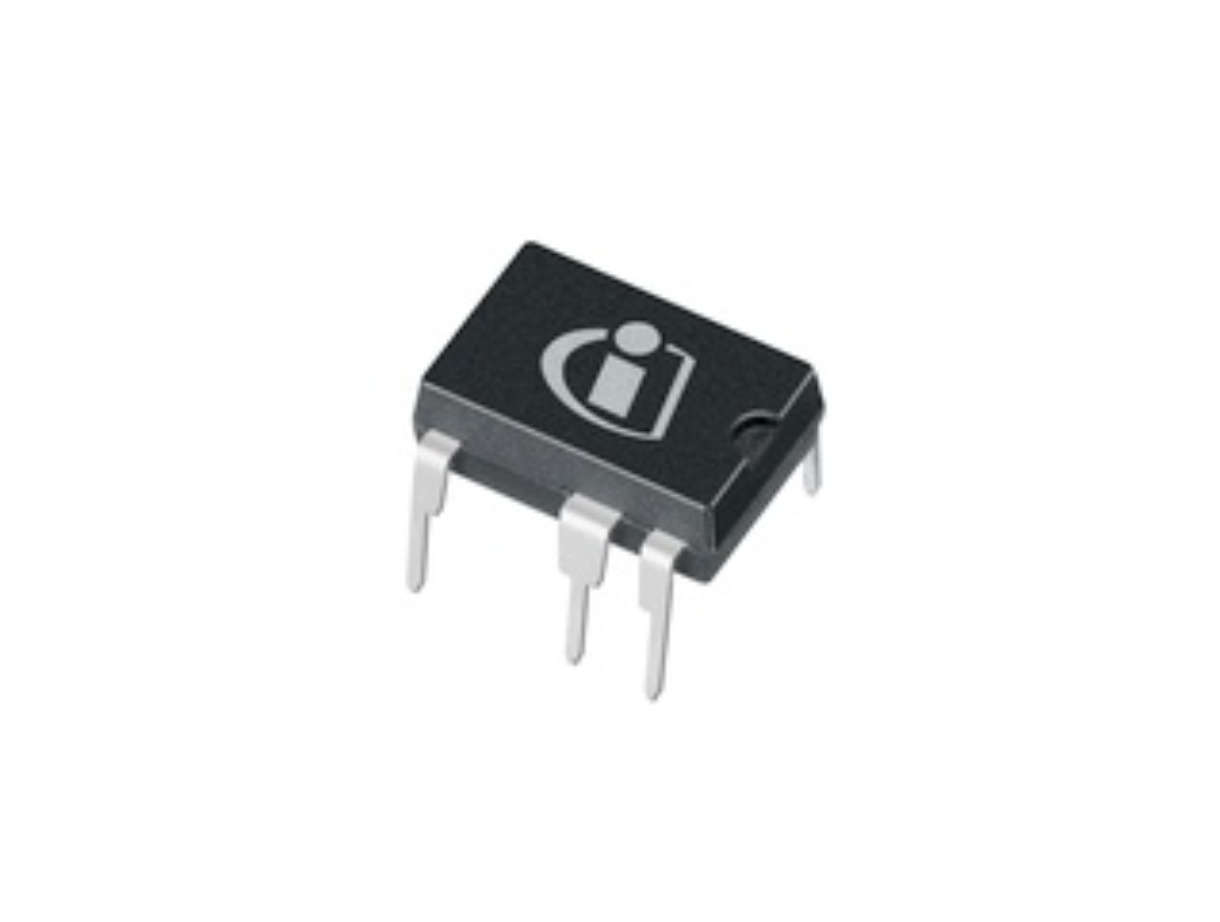

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description:
Off-line SMPS Current Mode Controller IC with integrated 650V CoolMOS™ and start-up cell in DIP-7 package. It has more robust design and can work to -40°C. The outstanding performance includes BiCMOS technology, active burst mode, built-in frequency jitter, soft gate driving, propagation delay compensation, built-in soft start time, built-in blanking time and extendable blanking time for over load protection, external auto-restart enable feature,etc.
Summary of Features:
650V avalanche rugged CoolMOS™ with built-in Start-up Cell
Active burst mode for lowest standby power
Fast load jump response in active burst mode
65kHz internally fixed switching frequency
Auto restart protection mode for overload, open
loop, V CC under voltage, over temperature & over voltage
Built-in soft start
Built-in blanking window with extendable blanking time for short duration high current
External auto-restart enable pin
Max duty cycle 75%
Overall tolerance of current limiting < ±5%
Internal PWM Leading Edge Blanking
BiCMOS technology provide wide V CC range
Built-in Frequency jitter and soft driving for low EMI
Benefits:
Lowest standby power requirements <50mW
Low operating temperature down to -40°C
Auto restart protection for overload, over temperature, over voltage
Wide VCC range
Soft driving for low EMI
Target Applications:
Adapter, Charger, Blu-Ray, DVD-Player, Set-Top-Box, Digital Photo Frame, Auxiliary Power Supply for Server, PC, Printer, TV, Home Theater/Audio System, White Goods, etc.

Show

ICE3RBR1765JZ Specifications
