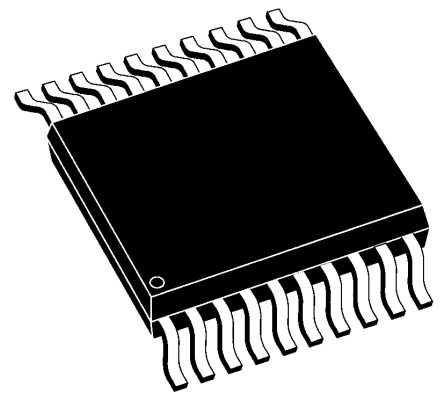

ICL3225ECAZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC66380466
Category:
Interface IC, Interface Controller
Package:
SSOP-20
Datasheet:
Datasheet 3D Model
Description:
LEAD-FREE RS232 3V 2D/2R 15kV 1Mbps E-DWN 20SSOP COM HT SUSA CODE:8542390000
Stock Locations:
Availability:
499 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.01

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL3225ECAZ is a RS-232 Transmitter/Receiver with marking. It meets ElA/TIA-232 and V.28/V.24 specifications, even at VCC = 3V. Additionally, it provides ±15kV ESD protection on transmitter outputs and receiver inputs. Efficient on-chip charge pumps, coupled with manual and enhanced automatic power-down functions, reduce the standby supply current to 1mA trickle. Data rates greater than 1Mbps are guaranteed at worst case load conditions. This family is fully compatible with 3.3V only systems, mixed 3.3 and 5V systems and 5V only systems. It features an enhanced automatic power-down function which powers down the on-chip power supply and driver circuits. This occurs when all receiver and transmitter inputs detect no signal transitions for a period of 30s. This device power back up, automatically, whenever they sense a transition on any transmitter or receiver input.
Drop in replacements for MAX3225E, MAX3227E, MAX3245E
Latch-up free
Ready to transmit indicator output
Receiver hysteresis for improved noise immunity
1Mbps Guaranteed minimum data rate
10ns Low skew at transmitter/receiver input trip points
24V/µs Guaranteed minimum slew rate
On-chip voltage converters require only four external 0.1µF capacitors

Show

ICL3225ECAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	SSOP-20
Supply Voltage (DC)	5.50 V, 5.50 V (max)
Supply Current	1 mA
Number of Positions	20 Position
Data Rate	1.00 Mbps
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	3V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	7.33 mm
Size-Width	5.38 mm
Size-Height	1.78 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
