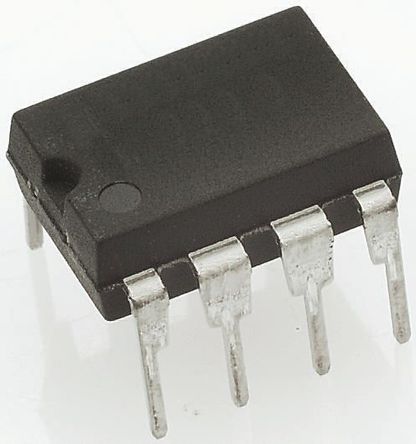

Image is for your reference only,please check specifications for details

ICL7621DCPAZ - Intersil
Manufacturer:
Intersil
ManyChip's Part#:
MC20358210
Category:
Operational Amplifier, OP Amp IC
Package:
DIP-8
Datasheet:
Datasheet 3D Model
Description:
INTERSIL ICL7621DCPAZ Operational Amplifier, Dual, 2 Amplifier, 480kHz, 0.16V/µs, ± 1V to ± 8V, DIP, 8Pins
Stock Locations:
Availability:
2,954 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.76

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ICL7621DCPAZ is a Dual CMOS Operational Amplifier provides the designer with high performance operation at low supply voltages and selectable quiescent currents. They are an ideal design tool when ultra low input current and low power dissipation are desired. The basic amplifier will operate at supply voltages ranging from ±1 to ±8V and may be operated from a single Lithium cell. The output swing ranges to within a few millivolts of the supply voltages. The quiescent supply current of these amplifiers is set to 100µA at the factory. This results in power consumption as low as 200µW per amplifier. Of particular significance is the extremely low (1pA) input current, input noise current of 0.01pA/√Hz and 1012R input impedance. These features optimize performance in very high source impedance applications.
Input current lower than BIFETs 1pA (typical)
Output voltage swing V+ and V-
Low power replacement for many standard op amps
ESD sensitive device, take proper precaution while handling the device.

Show

ICL7621DCPAZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	5.00 V
Supply Current	100 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	70 dB
Bandwidth	480 kHz
Slew Rate	160 mV/μs
Gain Bandwidth Product	480 kHz
Thermal Shutdown	No
Gain	102 dB
Input Offset Voltage	15 mV
Input Bias Current	1 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Gain Bandwidth	0.48 MHz
Minimum CMRR Range	70 dB
Supply Voltage	1.8 VDC
Supply Voltage (Max)	8 V
	Show
Size-Length	10.16 mm
Size-Width	7.11 mm
Size-Height	4.95 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
