Description
- The ICL7650S Super Chopper-Stabilized Amplifier offers exceptionally low input offset voltage and is extremely stable with respect to time and temperature. It is a direct replacement for the industry-standard ICL7650 offering improved input offset voltage, lower input offset voltage temperature coefficient, reduced input bias current, and wider common mode voltage range. All improvements are highlighted in bold italics in the Electrical Characteristics section. Critical parameters are guaranteed over the entire commercial temperature range.
- Features
- • Guaranteed Max Input Offset Voltage for All Temperature Ranges
- • Low Long-Term and Temperature Drifts of Input Offset Voltage
- • Guaranteed Max Input Bias Current. . . . . . . . . . . . . .10pA
- • Extremely Wide Common Mode
- Voltage Range. . . . . . . . . . . . . . . . . . . . . . . +3.5V to -5V
- • Reduced Supply Current . . . . . . . . . . . . . . . . . . . . . . 2mA
- • Guaranteed Minimum Output Source/Sink Current
- • Extremely High Gain . . . . . . . . . . . . . . . . . . . . . . . .150dB
- • Extremely High CMRR and PSRR . . . . . . . . . . . . . .140dB
- • High Slew Rate. . . . . . . . . . . . . . . . . . . . . . . . . . . .2.5V/µs
- • Wide Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2MHz
- • Unity-Gain Compensated
- • Clamp Circuit to Avoid Overload Recovery Problems and Allow Comparator Use
- • Extremely Low Chopping Spikes at Input and Output
- • Improved, Direct Replacement for Industry-Standard ICL7650 and other Second-Source Parts

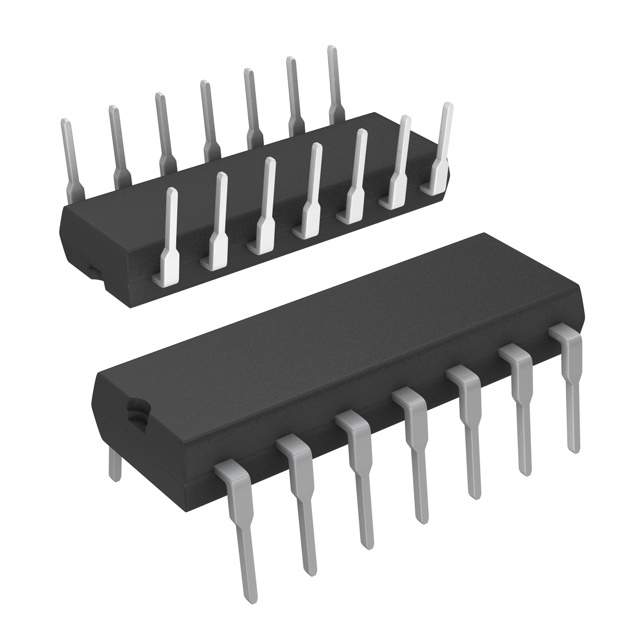

ICL7650SCPD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | DIP-14 |
| Supply Voltage (DC) | 5.00 V |
| Supply Current | 2 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Bandwidth | 2.00 MHz |
| Slew Rate | 2.50 V/μs |
| Gain Bandwidth Product | 2 MHz |
| Input Offset Voltage | 700 µV |
| Input Bias Current | 4 pA |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Gain Bandwidth | 2 MHz |
| Minimum CMRR Range | 120 dB |
| Supply Voltage | 4.5.16 VDC |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
